PA11-GF 3450

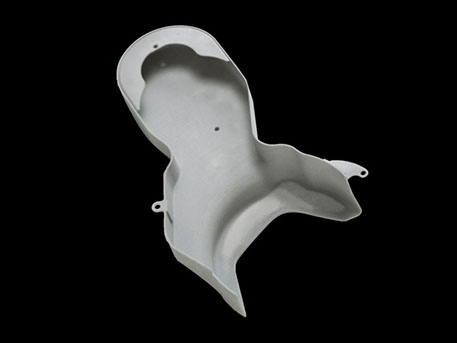

The PA11-GF 3450 fine polyamide powder is ideal for

mechanical parts in the engine compartment, complex

end-use parts for a wide range of applications from

Automotive, Aerospace to Military industries.









主な機能と利点

低収縮率と信頼性の高い特性

PA11-GF 3450 仕様 :

• Fine granulometry
• Similar to injected PA6-MD30 or PP-GB
• Resistance in extreme temperatures
• Low shrinkage, adapted for big parts
• Refresh rates at 50% (limited to 8-10 cycles) for lower operating costs



PA11-GF 3450  技術仕様：

Bulk density : 0.95 g/cm3

Density of parts : 1.40 g/cm3

Moisture absorption : 0.85% (ASTM D570)

Melting Point : 200°C

Heat Deflection 1.8 MPa : 133°C (ASTM D648)

Tensile Strength : 33 MPa

Tensile Modulus : 3450 MPa

Elongation @ break (XY) : 12%

Elongation @ break (Z) : 9%

Flexural Strength : N.A

Flexural Modulus : 2300 MPa

Impact Strength (unnotched Izod) : N.A

Shore Test (shore D) : N.A

Resistivity domain : Antistatic

Upper facing processed & blasting, Surface Ra : 11 µm

Upper facing after finishing, Surface Ra : 8 µm

Flammability 12 second burn : N.A

Flammability 60 second burn : N.A

Testing standard / Certification : ISO



OUR COMPATIBLE PROMAKER PRINTERS

　✔ ProMaker P1000　✔ ProMaker P1000X　✔ ProMaker P2000 HT　✔ ProMaker P2000 ST　✔ ProMaker P4500 SD

　✔ ProMaker P4500 HS　✔ ProMaker P4500X　✔ ProMaker P4500 HT
